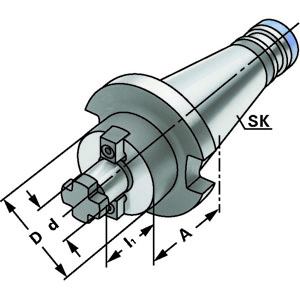

WITH ENLARGED CONTACT FACE
SK = SK 40
dH6 = 16
A = 30
l1 = 17
D = 38
Application:
For mounting milling cutters with transversal groove.
d = 40/d = 60:
For large diameter face mill cutters with four additional threaded holes according to DIN 2079.
Delivery:
With drivers, cross head retaining screw and cylinder head retaining screw for cutters with central coolant.
. runout accuracy: = 0.005 mm
. balanced G6.3 at 15,000 rpm
