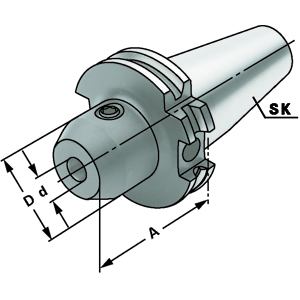

DIN 69871 AD/B
SK = SK 40
dH4 = 8
A = 50
D = 28
Application:
For mounting straight-shank tools with flat according to DIN 1835 form B (Weldon).
Note:
From d = 25 on two clamping screws
Delivery:
With clamping screw
. runout accuracy: = 0.003 mm
. balanced G6.3 at 15,000 rpm
. Form AD/B: Delivery in form AD, type B closed with releasable headless screws.
. Bore holes for data carriers ("Balluffchip") according to DIN 69873 in collar.
